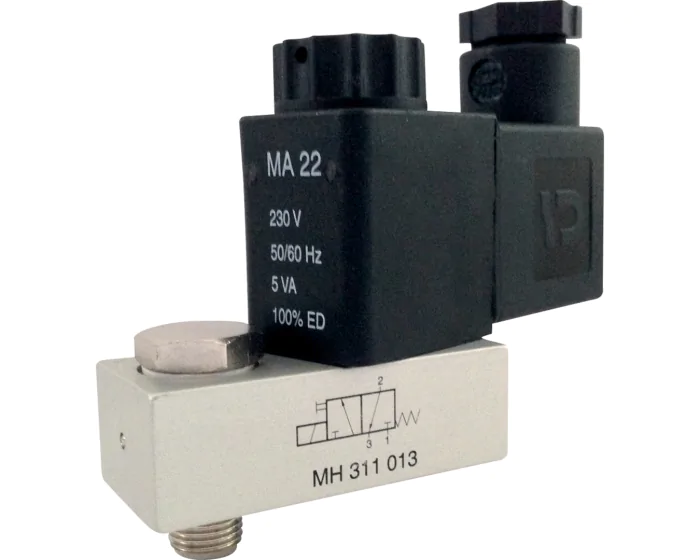

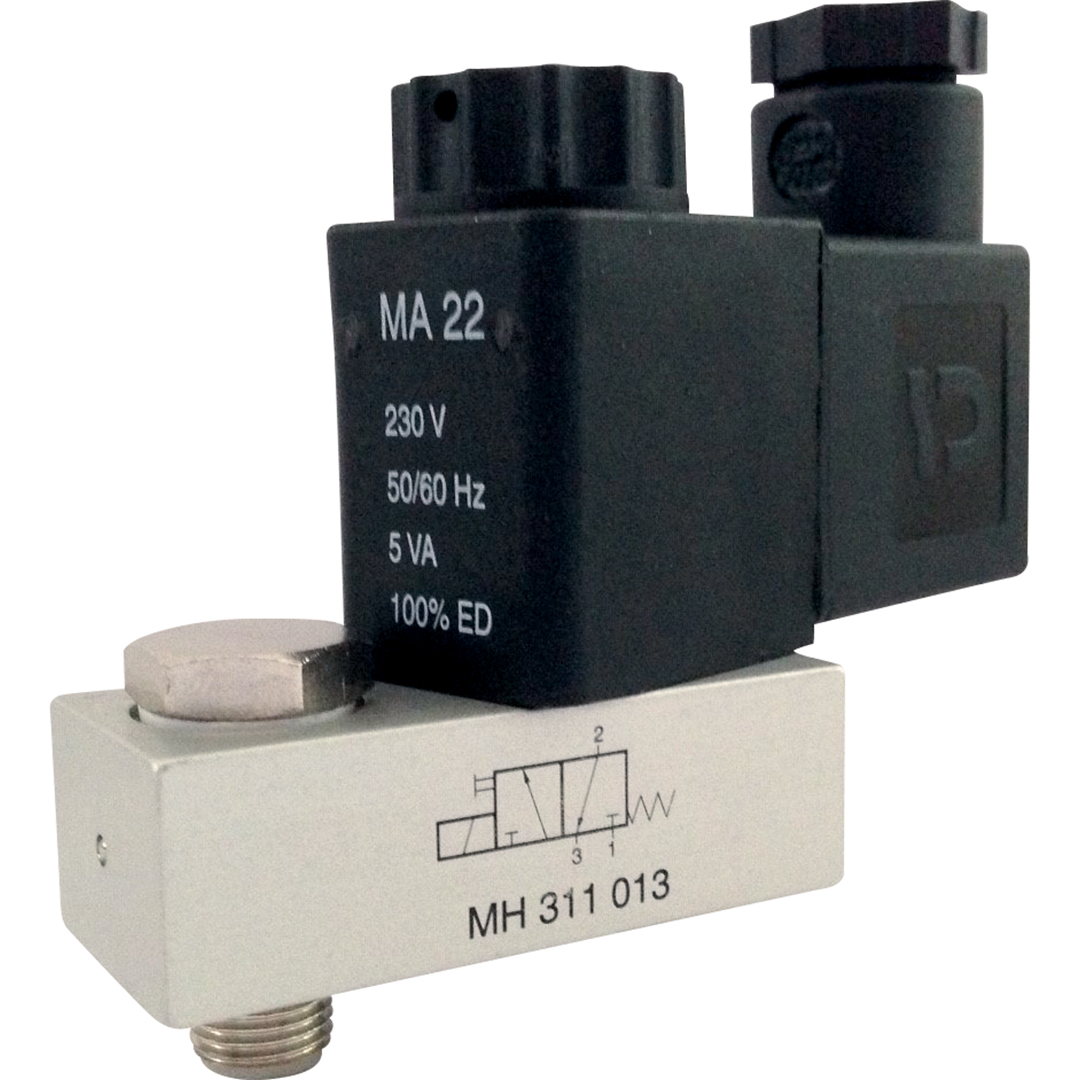

The solenoid valve type MH is a 3/2-way pilot valve made of anodised aluminium for the control of pneumatic valves.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0 |
| Connector | T22 |
| DN | DN6 - 1/8'' |
| Fluid | Air / Neutral gases / Vacuum |
| Protection index (IP) | IP 65 |
| Body material | Aluminium |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 50 |
| TS min (°C) | -10 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 3/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Aluminium 230 V AC | 041901B | S1000122 |
€31.81
(excl. btw)
|
add to cart |
| BSP FF Aluminium 24 V AC | 041902B | S1000123 |
€31.81
(excl. btw)
|
add to cart |
| BSP FF Aluminium 24 V DC | 041903B | S1000124 |
€31.81
(excl. btw)
|
add to cart |
